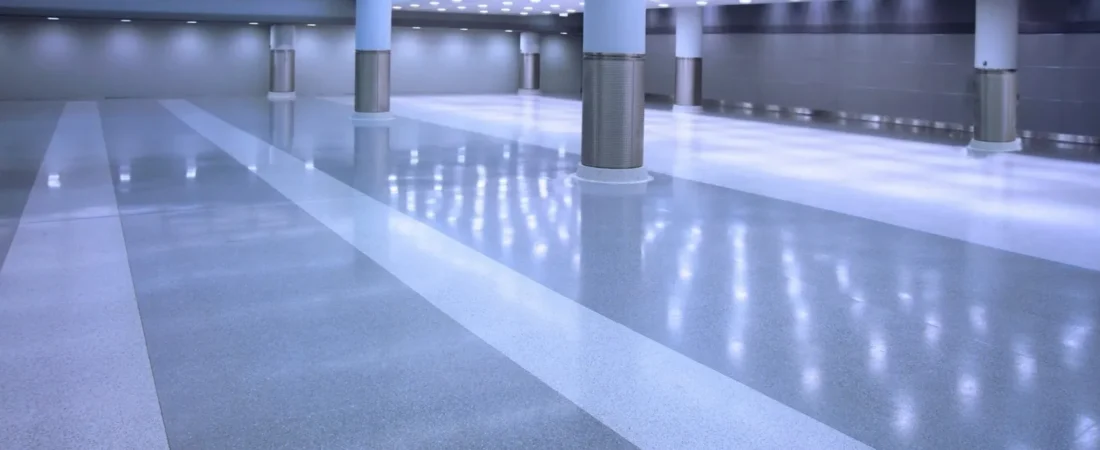

Conductive Flooring in Pakistan: Types, Benefits, Applications & Installation
Conductive flooring is a specialised flooring system designed to provide a controlled path for electrical charge dissipation. It is used in environments where controlling static electricity is important, including electronics manufacturing, pharmaceutical facilities, laboratories, healthcare areas, cleanrooms and other sensitive workplaces.
Static electricity may appear harmless, but uncontrolled electrical charges can damage sensitive electronic components, interfere with equipment and create ignition risks in certain environments. Conductive flooring helps control these charges when it is designed, installed and grounded as part of a complete static-control system.
Unlike conventional decorative or industrial flooring, conductive flooring has specific electrical performance requirements. The resin, conductive primer, copper grounding network, conductive layer, surface finish and installation method must work together.
What Is Conductive Flooring?
Conductive flooring is a flooring system with controlled electrical conductivity. Its purpose is to provide a predictable route through which electrostatic charges can dissipate toward an appropriate grounding point.
Conductive flooring can be manufactured using resin systems such as epoxy or polyurethane combined with conductive materials. A typical system may include a conductive primer, copper grounding strips or grid, conductive resin layer and compatible topcoat.
Controlled Conductivity
The flooring provides a controlled electrical path for electrostatic charge dissipation.
Grounding Connection
A properly designed grounding system provides the intended route from the floor to earth.
Seamless Surface
Resin flooring can provide a continuous surface with minimal joints when correctly installed.
ESD Control
Conductive flooring can form part of an overall electrostatic discharge control programme.
Conductive Flooring vs ESD Flooring
The terms conductive flooring and ESD flooring are sometimes used interchangeably, but electrical performance should be defined by the applicable project requirements and test standards.
Conductive flooring generally refers to a floor with relatively low electrical resistance that provides a controlled path for charge dissipation. ESD flooring is a broader term often used for flooring systems designed to control electrostatic discharge within a complete ESD protection programme.
| Feature | Conductive Flooring | ESD Flooring |
|---|---|---|
| Primary Purpose | Controlled charge dissipation | Electrostatic discharge control |
| Electrical Performance | Designed for conductive resistance range | Specified according to ESD requirements |
| Grounding | Required as part of system design | Required according to system design |
| Applications | Industrial and sensitive environments | Electronics, cleanrooms and controlled areas |
Types of Conductive Flooring
Conductive Epoxy Flooring
A resin-based conductive floor system suitable for many industrial, electronic and controlled environments.
Conductive PU Flooring
Polyurethane-based conductive systems can be considered where flexibility, durability or specialised chemical and thermal performance is required.
Conductive Vinyl Flooring
Conductive vinyl sheets or tiles can be used in selected healthcare, electronic and controlled environments.
Conductive Resin Flooring
Resin-based systems can be customised for electrical performance, durability, chemical resistance and appearance.

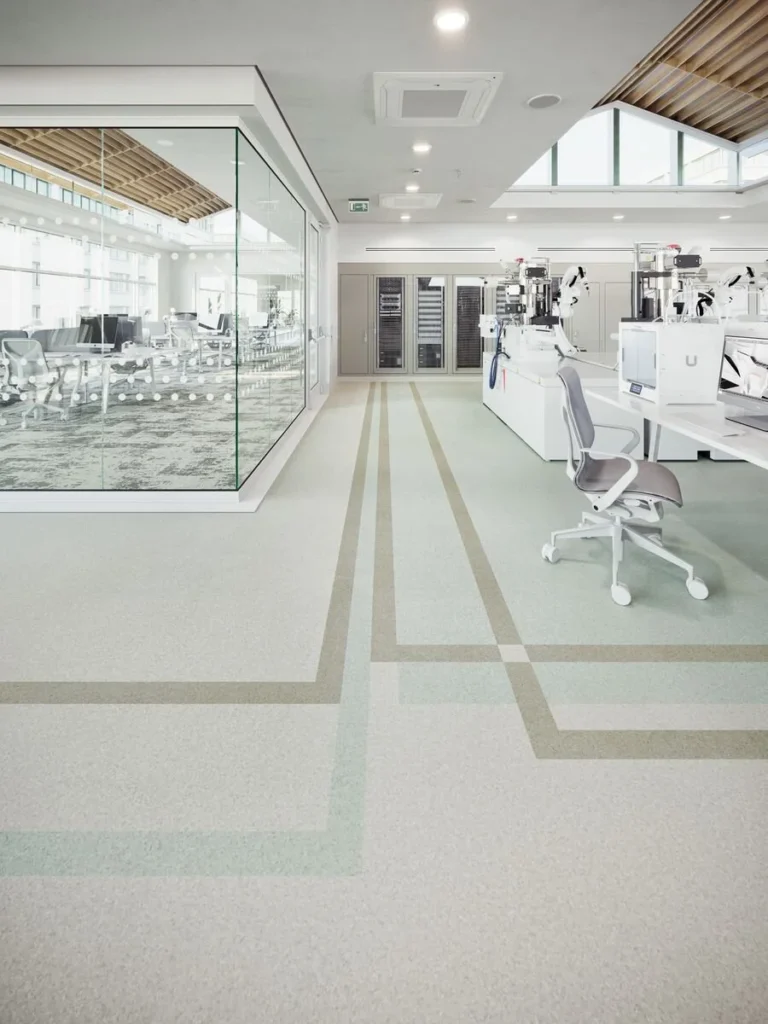

Conductive Epoxy Flooring
Conductive epoxy flooring combines the durability of epoxy resin with a conductive flooring structure. It can be used where a seamless resin floor and controlled static charge dissipation are required.
Durable Surface
Properly specified epoxy systems can withstand substantial foot traffic and selected wheeled traffic.
Controlled Electrical Properties
Conductive components are incorporated to achieve the required electrical performance.
Chemical Resistance
Suitable epoxy formulations can provide resistance to selected chemicals according to their technical specification.
Seamless Finish
Resin flooring provides a continuous surface with minimal joints compared with many traditional floor finishes.
How Conductive Flooring Works
A conductive flooring system works by providing a controlled pathway from the floor surface to an approved grounding point. When a person or object carrying electrostatic charge contacts the conductive surface, the charge can dissipate through the flooring and grounding network.
Static Charge
Electrical charge can accumulate on people, equipment or materials during normal operations.
Floor Contact
Contact with the conductive flooring creates a path for the charge to move through the floor system.
Conductive Layer
The conductive layer transfers the electrical charge toward the grounding network.
Grounding
The grounding connection provides the intended path for controlled charge dissipation.
Components of a Conductive Flooring System
Concrete Substrate
The base must be structurally sound, clean, dry and suitable for the selected resin system.
Conductive Primer
A compatible conductive primer helps establish the electrical pathway within the flooring system.
Copper Grounding Network
Conductive copper strips or grids can connect the floor system to designated grounding points.
Conductive Resin Layer
The conductive resin layer provides the required electrical characteristics across the floor.
Topcoat
A compatible finish may be applied to achieve the required durability, appearance and chemical resistance.
Benefits of Conductive Flooring
Static Charge Control
Conductive flooring provides a controlled pathway for electrostatic charge dissipation.
Protection of Sensitive Equipment
Static-control flooring can form part of an ESD programme designed to protect sensitive electronic equipment.
Seamless Construction
Resin systems can provide a continuous floor surface with limited joints.
Durability
Industrial conductive resin floors can provide strong resistance to normal foot and wheeled traffic.
Easy Maintenance
Seamless resin flooring can be cleaned using compatible cleaning procedures.
Chemical Resistance
Suitable formulations can provide resistance to selected chemicals and cleaning agents.
Custom Appearance
Conductive resin floors can be available in different colours and finishes depending on the system.
Low Joint Count
A seamless resin surface can reduce joints where dirt and contaminants may collect.
Applications of Conductive Flooring
Electronics Manufacturing
Conductive flooring can be used in areas where sensitive electronic components require electrostatic control.
Semiconductor Facilities
Static-control flooring can support ESD-sensitive production environments.
Pharmaceutical Facilities
Conductive resin floors can be considered for selected pharmaceutical production and controlled areas.
Cleanrooms
Suitable conductive flooring can combine static control with a seamless and cleanable surface.
Laboratories
Conductive flooring can be specified where laboratory operations require electrostatic control.
Data & Server Rooms
Static-control flooring may be considered for environments containing sensitive electronic equipment.

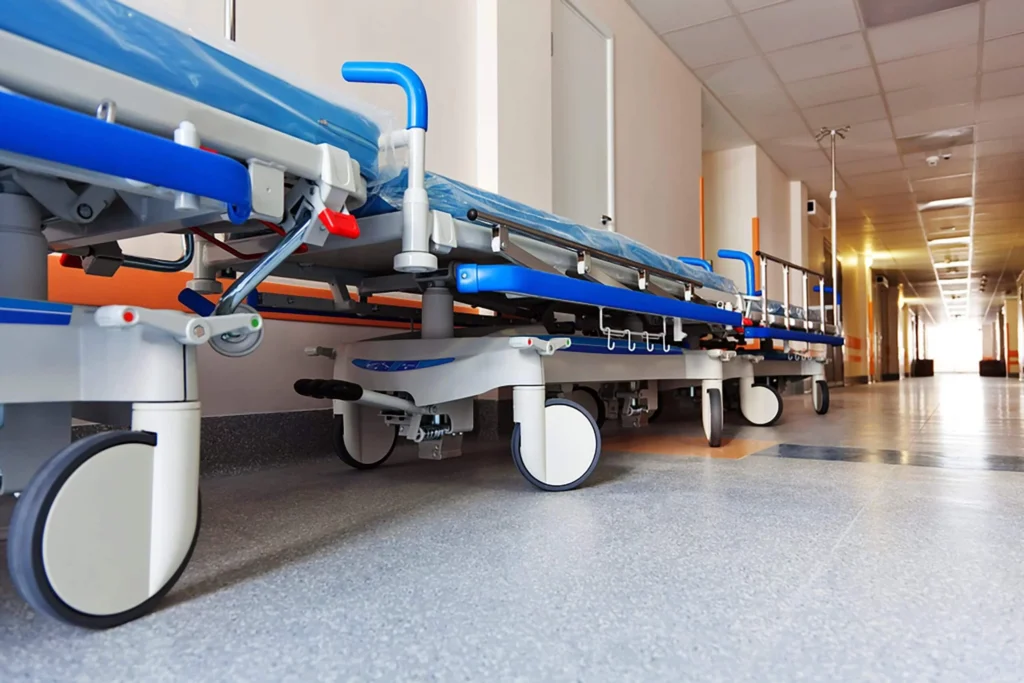

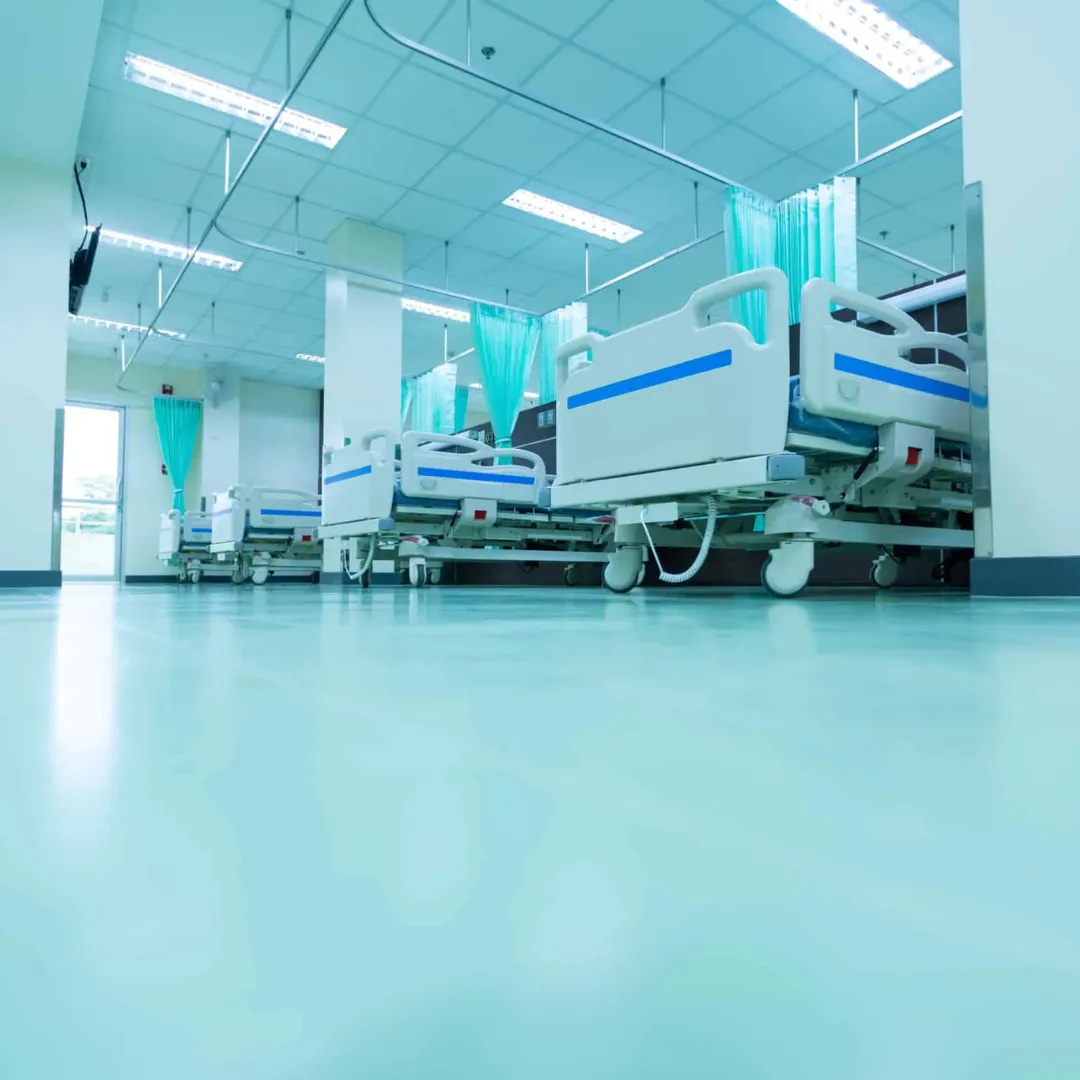

Medical Areas
Specialised conductive floors can be used in selected healthcare environments where electrical control is required.
Industrial Laboratories
Conductive flooring can support static-sensitive testing and production environments.
Conductive Flooring for Electronics Manufacturing
Electronic components can be sensitive to electrostatic discharge. Even a discharge that is not noticeable to a person can potentially damage sensitive components.
Conductive flooring can therefore form part of an ESD control system in electronics manufacturing, assembly, testing and repair areas.
- PCB assembly areas.
- Electronic component manufacturing.
- Testing laboratories.
- Electronic repair facilities.
- Component storage areas.
- Clean assembly rooms.
- ESD-controlled workstations.
Conductive Flooring for Pharmaceutical Facilities
Pharmaceutical facilities may require flooring that combines electrical control with hygiene, chemical resistance, durability and easy maintenance.
Production Areas
Conductive flooring can be selected for appropriate production environments requiring static control.
Laboratories
Resin-based conductive flooring can provide a seamless, cleanable surface.
Cleanrooms
Appropriate conductive systems can support controlled environments where static and contamination control matter.
Utility Areas
Durable conductive flooring can be specified for selected service and utility areas.
Conductive Flooring for Cleanrooms
Cleanroom flooring needs to support cleaning, contamination control, durability and the specific operational requirements of the room. Where static control is also required, conductive flooring can be incorporated into the cleanroom design.
Conductive Flooring for Data Centers & Server Rooms
Data centers and server environments contain sensitive electronic equipment where uncontrolled static discharge can be undesirable. Conductive flooring may be incorporated into a broader electrostatic control strategy.
Static Control
The flooring provides a controlled route for static charge dissipation when properly grounded.
Equipment Protection
Conductive flooring can support an overall ESD protection programme for sensitive electronic equipment.
Durable Surface
Resin floors can withstand normal pedestrian and maintenance traffic.
Easy Maintenance
A seamless resin floor can simplify routine cleaning and maintenance.
Conductive Flooring Installation Process
Conductive flooring requires careful installation because electrical performance depends on the complete system rather than the surface coating alone.
- Inspect the concrete substrate and identify defects.
- Remove oil, grease, dust, laitance and loose material.
- Mechanically prepare the concrete surface.
- Repair cracks and surface defects where required.
- Check substrate moisture and environmental conditions.
- Apply the compatible primer.
- Install the designated copper grounding network.
- Connect the grounding system to the approved earth connection.
- Apply the conductive primer or conductive layer.
- Apply the conductive epoxy or PU flooring layer.
- Apply the compatible finishing coat where specified.
- Test electrical resistance according to the project requirements.
- Allow the flooring system to cure before normal operation.
Grounding in Conductive Flooring
Grounding is a critical component of conductive flooring. A conductive coating without an appropriate grounding pathway does not provide the same function as a complete grounded conductive floor system.
Copper strips, copper tape or a conductive grid may be installed beneath the conductive layer and connected to designated grounding points. The exact configuration should be designed by a qualified flooring and electrical professional according to the project requirements.
Concrete Preparation for Conductive Flooring
Proper surface preparation is essential for adhesion and long-term performance. The concrete should be structurally sound and free from contaminants that could interfere with bonding.
Surface Inspection
Identify cracks, weak concrete, contamination, moisture and previous coatings.
Mechanical Grinding
Grinding or another suitable mechanical method can remove laitance and create the required surface profile.
Crack Repair
Repair suitable cracks and damaged areas before installing the conductive system.
Moisture Assessment
Confirm that substrate moisture conditions meet the flooring manufacturer’s requirements.
Electrical Resistance of Conductive Flooring
Electrical resistance is one of the most important characteristics of conductive flooring. The required resistance range should be defined according to the intended application and the relevant standard or project specification.
Testing should be carried out using an appropriate calibrated method and equipment. Results can be affected by humidity, temperature, footwear, surface contamination, grounding connections and the condition of the floor.
| Factor | Potential Effect on Electrical Performance |
|---|---|
| Humidity | Can influence surface electrical characteristics |
| Temperature | May affect material and measurement behaviour |
| Contamination | Can alter surface resistance and contact conditions |
| Grounding | Essential for the intended charge dissipation path |
| Floor Wear | Can change surface properties over time |
Conductive Flooring Standards
Conductive and ESD flooring projects should be specified and tested against the standard or test method applicable to the intended environment. Depending on the project, specifications may reference standards for electrostatic control, electrical resistance, grounding, flooring performance and workplace safety.
The exact standard should be selected according to the facility, equipment, industry and project requirements rather than using a generic electrical resistance value for every application.
How to Maintain Conductive Flooring
- Clean the floor regularly using compatible cleaning products.
- Remove dust, dirt and contamination from the surface.
- Avoid cleaning chemicals that can damage the resin system.
- Do not apply unapproved waxes or insulating coatings.
- Inspect the floor for cracks, wear and physical damage.
- Check grounding connections according to the facility’s maintenance programme.
- Periodically test electrical resistance where required.
- Repair damaged areas using compatible conductive materials.
Common Conductive Flooring Installation Mistakes
Poor Concrete Preparation
Contaminated or weak concrete can result in poor adhesion and premature flooring failure.
Incorrect Grounding
A conductive surface without a properly designed grounding system may not provide the intended charge dissipation path.
Wrong Conductive Layer
Using a conventional coating instead of a compatible conductive system can result in incorrect electrical performance.
No Electrical Testing
Conductive flooring should be tested against the required electrical performance criteria after installation.
Incorrect Topcoat
An incompatible insulating topcoat can negatively affect the intended electrical characteristics of the system.
Ignoring Environmental Conditions
Temperature, humidity, moisture and contamination can influence flooring performance and testing results.
Conductive Flooring Price in Pakistan
Conductive flooring generally costs more than standard epoxy flooring because it requires specialised conductive materials, grounding components, electrical testing and additional installation steps.
| Conductive Flooring System | Indicative Price Per Sq. Ft. |
|---|---|
| Conductive Epoxy System | PKR 350–600 |
| Heavy-Duty Conductive Epoxy | PKR 450–750 |
| Conductive PU Flooring | PKR 500–850 |
| Specialised ESD Flooring | Project Specific |
Factors Affecting Conductive Flooring Cost
Floor Area
Larger installations may have different material and labour economics compared with small areas.
Substrate Condition
Damaged or contaminated concrete may require additional preparation and repair.
Electrical Specification
Specialised electrical requirements can increase system complexity and testing requirements.
Grounding Network
The size and configuration of the grounding network can affect material and installation cost.
Resin Type
Epoxy, PU and specialised resin systems have different material and performance characteristics.
Testing
Electrical resistance testing and documentation may add to the project cost.
Conductive Flooring vs Standard Epoxy Flooring
| Feature | Conductive Epoxy | Standard Epoxy |
|---|---|---|
| Static Control | Designed for controlled charge dissipation | Not specifically designed for static control |
| Grounding | Required as part of system design | Normally not required |
| Electrical Testing | Required according to project specification | Normally not a primary requirement |
| Cost | Higher | Generally lower |
| Applications | ESD-sensitive environments | General industrial and commercial areas |
When Should You Choose Conductive Flooring?
Conductive flooring should be considered when uncontrolled static charge could negatively affect equipment, products, processes or safety requirements.
- Electronics manufacturing facilities.
- ESD-controlled production areas.
- Laboratories handling sensitive equipment.
- Pharmaceutical production environments.
- Cleanrooms requiring static control.
- Selected medical and healthcare environments.
- Data and server rooms with ESD-control requirements.
- Industrial environments with sensitive electronic equipment.
Frequently Asked Questions About Conductive Flooring
What is conductive flooring?
Conductive flooring is a specialised flooring system designed to provide a controlled path for electrical charge to dissipate through an appropriate grounding system.
What is conductive epoxy flooring?
Conductive epoxy flooring is an epoxy resin flooring system incorporating conductive materials and a grounding network to provide controlled static charge dissipation.
What is the difference between conductive and anti-static flooring?
Conductive flooring is designed with relatively low electrical resistance to provide a controlled charge dissipation path. Anti-static flooring is a broader term and may refer to materials designed to reduce or control static charge generation and accumulation.
Is conductive flooring the same as ESD flooring?
The terms are related but are not necessarily identical. Conductive flooring can be one component of an ESD protection system. The required electrical performance should be defined according to the application and applicable standard.
Where is conductive flooring used?
Conductive flooring is used in electronics manufacturing, pharmaceutical facilities, laboratories, cleanrooms, data rooms, healthcare environments and other areas where electrostatic control is important.
Does conductive flooring require grounding?
Yes. A conductive flooring system normally requires an appropriately designed grounding pathway to perform its intended charge dissipation function.
What is used to ground conductive epoxy flooring?
Conductive epoxy systems may use copper strips, copper tape or a conductive grid connected to designated grounding points. The exact arrangement should be designed for the specific project.
Is conductive epoxy flooring suitable for electronics factories?
Yes. Conductive epoxy flooring can be suitable for electronics manufacturing and assembly environments when correctly specified, grounded and tested.
Is conductive flooring suitable for cleanrooms?
Yes. Conductive resin flooring can be used in suitable cleanroom environments where electrical control is required, provided the system also meets the room’s cleanliness, chemical and maintenance requirements.
How much does conductive flooring cost in Pakistan?
Indicative conductive resin flooring costs can range from approximately PKR 350 to PKR 850 per square foot depending on the system, grounding requirements, substrate preparation, thickness, testing and project conditions.
How is conductive flooring installed?
Installation generally involves concrete preparation, primer, grounding network installation, conductive primer or layer, conductive resin flooring, compatible finishing and electrical testing.
Does conductive flooring need electrical testing?
Yes. Electrical resistance and grounding performance should be tested according to the applicable project requirements and test method.
Can conductive flooring be used in pharmaceutical facilities?
Yes. Conductive flooring can be considered for pharmaceutical production, laboratories and other controlled areas where static control is required.
How long does conductive epoxy flooring last?
Service life depends on the resin system, substrate preparation, traffic, chemical exposure, maintenance and environmental conditions. Proper installation and maintenance can significantly improve longevity.
Can conductive flooring be repaired?
Yes, damaged areas can generally be repaired using compatible conductive materials, but electrical continuity and resistance should be checked after repair.
Need Conductive Flooring in Pakistan?
Get a professionally specified conductive epoxy or PU flooring system for electronics manufacturing, pharmaceutical facilities, laboratories, cleanrooms, data rooms and other ESD-sensitive environments.
Request a Conductive Flooring ConsultationConclusion
Conductive flooring is a specialised solution for environments where electrostatic charge needs to be controlled. Conductive epoxy and PU systems can provide a durable, seamless floor while forming part of a properly designed grounding and ESD protection system.
The performance of conductive flooring depends on much more than the resin coating itself. Concrete preparation, conductive layers, grounding connections, electrical resistance, environmental conditions and regular testing all contribute to the final result.
For electronics factories, pharmaceutical facilities, laboratories, cleanrooms, data rooms and other sensitive environments, the flooring should be specified according to the actual electrical, chemical, mechanical and maintenance requirements of the facility.
